DEM Configuration : RTA-CAR v12.0.1

 Contents

Introduction

Scope

This application note provides a detailed overview of the Diagnostic Event Manager (DEM) and how to configure it within an existing RTA-CAR project configured with a diagnostic stack and a memory stack. The document will follow the creation of the DEM module as configured within our RTA-CARv12 Starter Kit, as well as implementing further features such as Debouncing and other basic use-cases.

Definitions & Abbreviations

AR: AUTOSAR

BSW: AUTOSAR Basic Software / Hardware independent service layer

RTE: AUTOSAR Real Time Environment

OS: AUTOSAR Operating System

DEM: Diagnostic Event Manager

SWC: Software Component

DCM: Diagnostic Communication Manager

DTC: Diagnosis Trouble Code

DID: Data Identifiers

Tool-chain

It is assumed you are using the RTA-CAR 12.0.1 toolchain:

RTA-CAR 12.0.1 toolchain
ISOLAR-AB12.0.1
RTA-RTE12.0.0
RTA-BSW12.0.0
RTA-OS12.0.0

Pre-requisites

In order to complete this guide, it is assumed the user has a good knowledge of AR methodology and terminology, as well as having the specified tool-chain installed.

Functional Overview

The Diagnostic Event Manager (DEM) within AUTOSAR is a central software component that is responsible for monitoring the system for events that may indicate a malfunction or fault, and the managing of reports for these events to other components. It is designed to be the central point of control for all diagnostic events in the system, maintaining a list of all diagnostic events: event data, status information and also trigger specific diagnostic actions based on the events.

Journey through DEM

Event Detection

Detection of diagnostic events within a system, is the initial operation of the DEM, detecting events from various sources: software components from Engine Control Units (ECU) or the Anti-Lock Brake System (ABS), as well as hardware components such as sensors and actuators. When an event is detected, the DEM receives the event data and assigns it a unique identifier called a Diagnostic Trouble Code (DTC). DTCs are used represent specific faults or malfunctions within the system, and they are used to communicate diagnostic event information to other components. DTCs are usually a combination of alphanumeric characters that correspond to a specific diagnostic event, and can be stored/retrieved by the DEM for later analysis.

Furthermore, the DEM also assigns unique identifiers called Diagnostic Data Identifier (DIDs) to specific diagnostic event data. DIDs are used to identify and access the data associated with a diagnostic event; typically, numerical values that correspond to a specific piece of diagnostic data.

Event Evaluation

After an event has been detected, the DEM evaluates the event data to determine its severity level. This can range from a simple warning to a critical fault that may require immediate attention. The severity level is determined by the DEM based on pre-configured rules and thresholds. Once the severity level is determined, the DEM can take appropriate actions based on the event's severity.

Event Reaction

Depending on the event's severity level, the DEM may trigger a specific diagnostic action. For example, if a critical fault is detected, it may trigger a warning light on the dashboard to inform the driver or shut down the engine to prevent damage/further faults. If a less severe event is detected, the DEM may simply store the event for later analysis.

Event Reporting

The DEM also manages the reporting of diagnostic events to other components. It does this through a standardised interface, which allows components to access the event data and status information of relevant events. This enables components such as diagnostic testers or repair tools to analyse these events and determine the cause of the fault. The DEM can handle multiple communication channels, allowing it to report diagnostic events to different components using differing communication protocols, such as CAN, UDS or Ethernet.

Event Storage

The DEM can also handle and store historical data of diagnostic events, this information can be used for later analysis or to check if a specific pattern of issue is repeating, which could indicate a malfunction within the system. Additionally, DTCs can be cleared by the DEM, this is useful when a problem has been solved, and it prevents unnecessary warning lights or alarms.

Debouncing

Event Debouncing is another important feature of the DEM. Event debouncing refers to the process of eliminating multiple occurrences of a diagnostic event that are caused by a single physical event. This is done by ensuring that a diagnostic event is only reported once, even if it is detected multiple times within a short period of time. Event debouncing is typically implemented by using a timer or counter. When diagnostic event is detected, the timer or counter is started. If another diagnostic event of the same fault is detected within a certain period of time (the "debounce time"), it is ignored, and the timer or counter is reset. If no further diagnostic events are detected within the debounce time, the timer or counter expires and the diagnostic event is reported.

Event Aging

Event Aging refers to the mechanism of automatically discarding old diagnostic events that are no longer relevant. The event aging process removes events from the event memory if they are older than a specified time limit, or if they've already been reported. This helps to prevent the event memory from being cluttered with outdated information and ensures only current and relevant data is stored.

Workflow

Workflow Summary

  1. DEM Creation
  2. DemGeneral Configuration
    1. DemEventMemorySet
    2. DemClient
    3. DemOperationCycles
    4. DemRbGeneral
  3. DemConfig Configuration

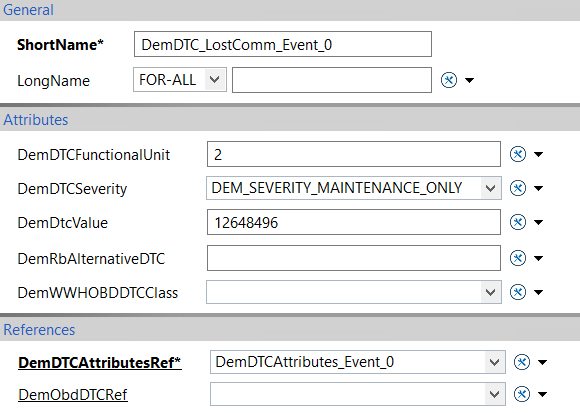

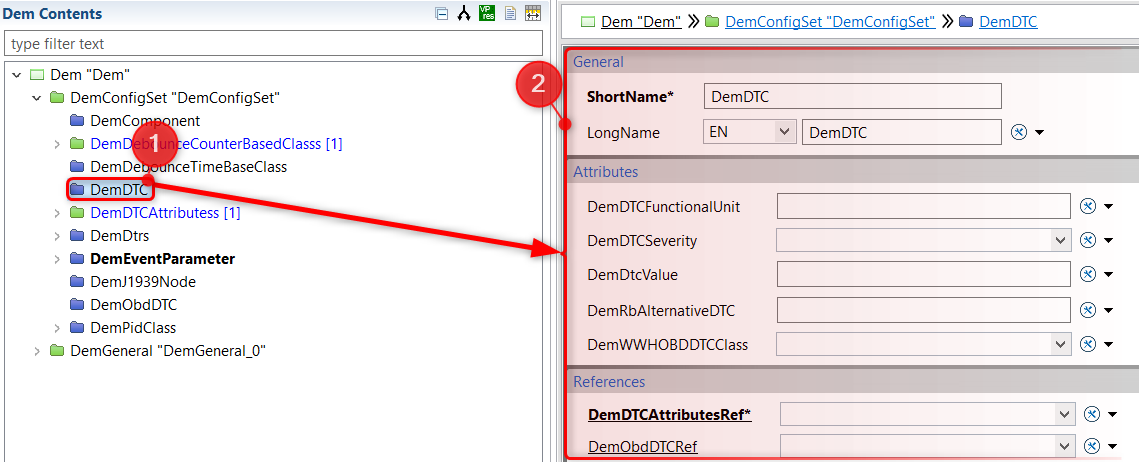

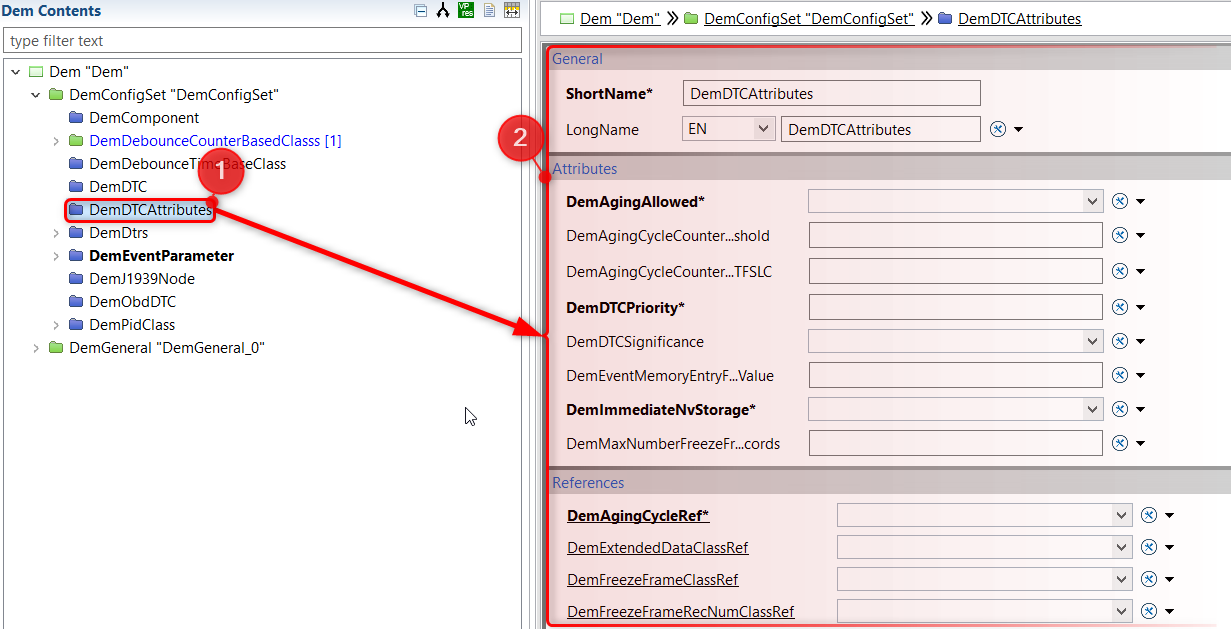

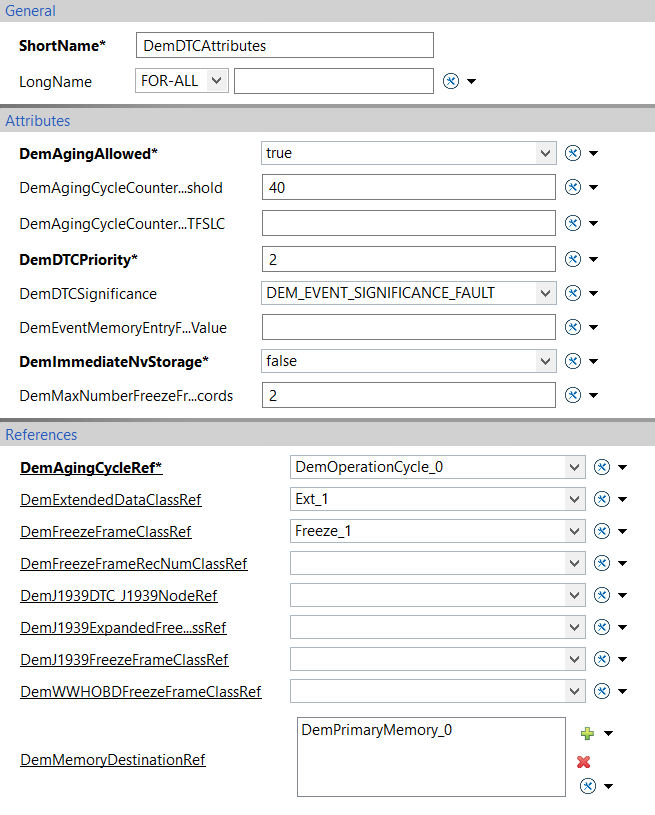

    1. DemDTC

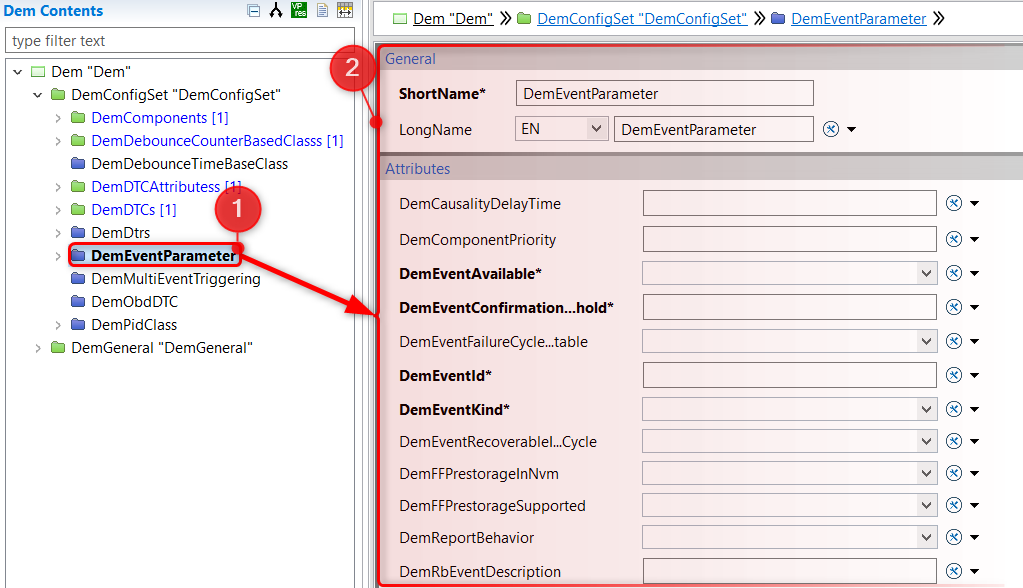

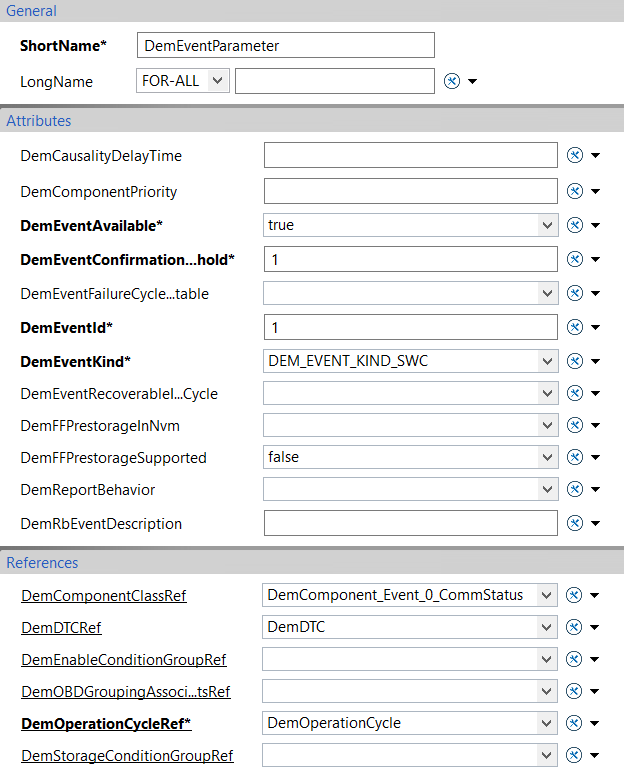

    2. DemEventParameter
    3. DemDataElementClass
    4. DemExtendedDataRecordClass
    5. DemDID
    6. DemNvRamBlockId
  4. BswM Configuration

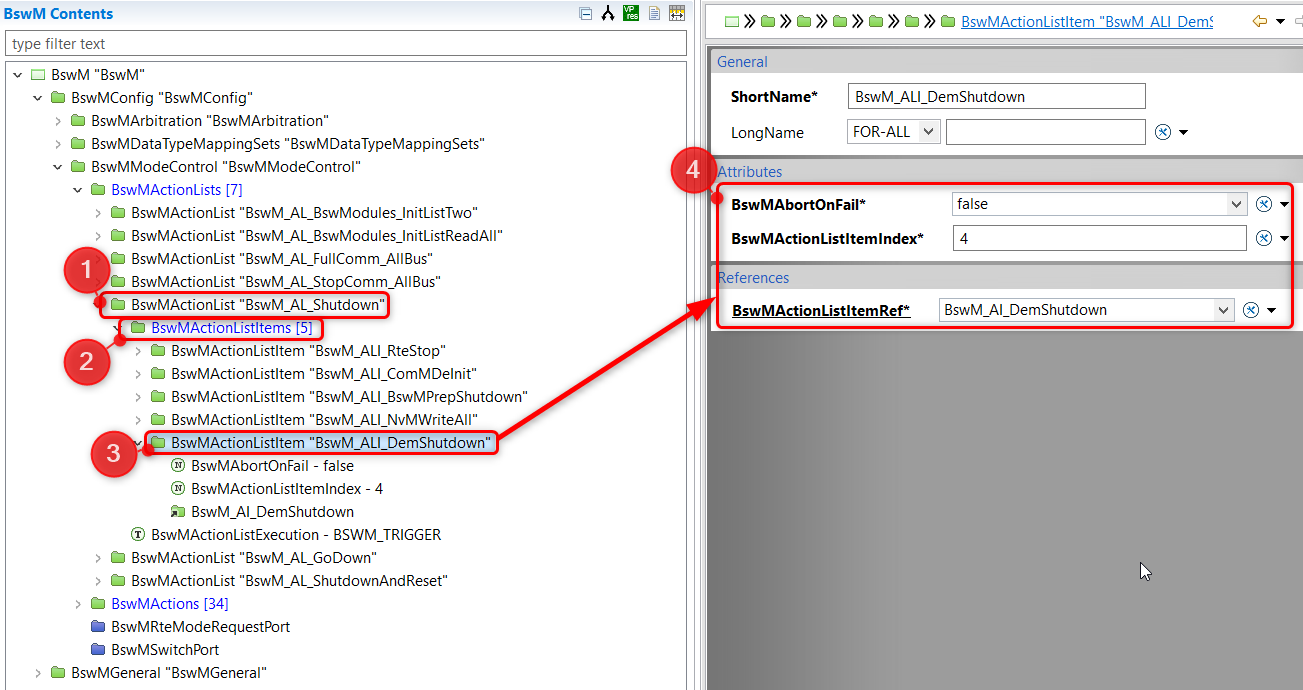

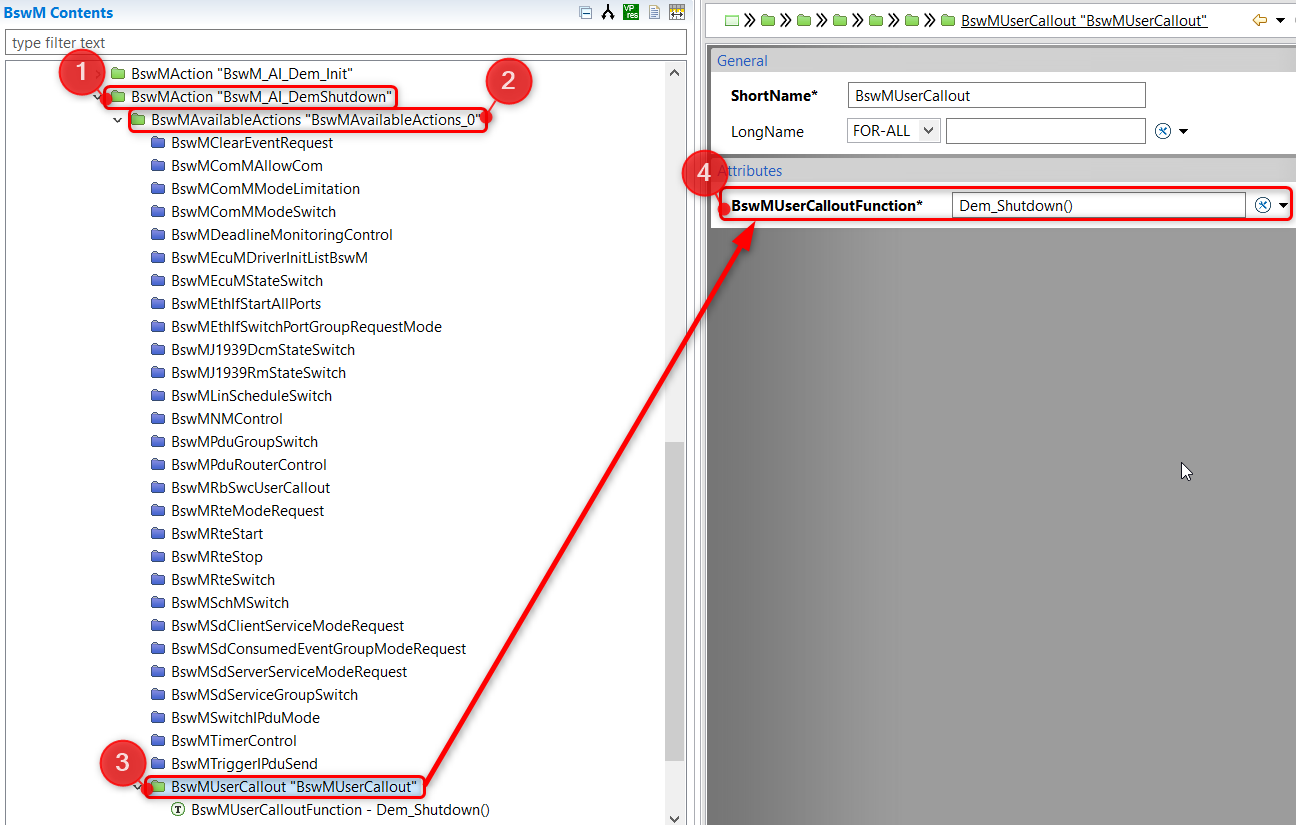

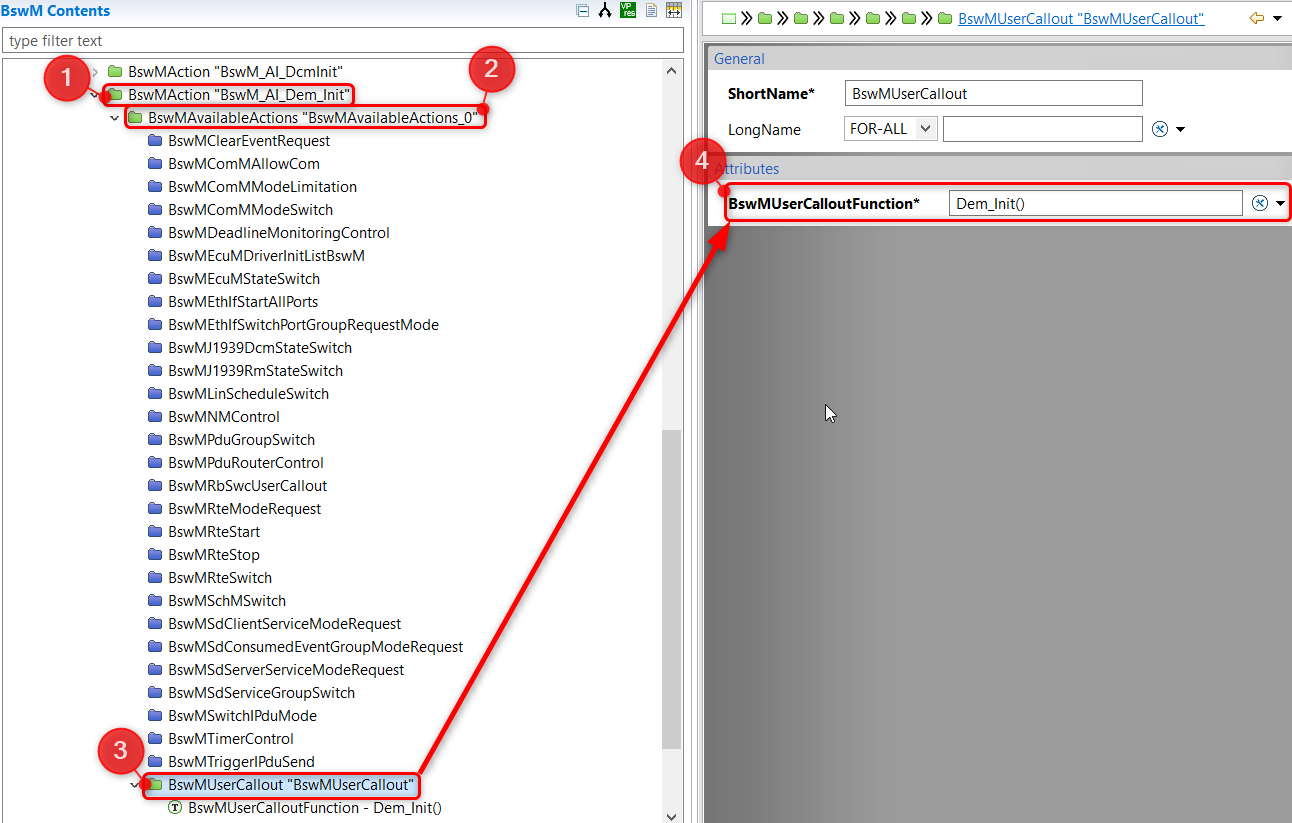

    1. Action Item
    2. Action List Item
  5. EcucM Configuration
  6. DCM Configuation

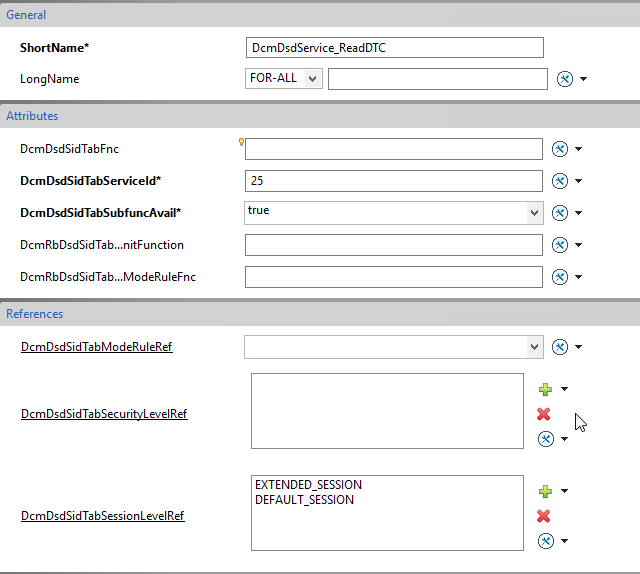

    1. DcmDsdServiceTable
    2. DcmRbDspReadDTC
  7. BSW Generation
  8. SWC Update
  9. System Update

Dem Creation

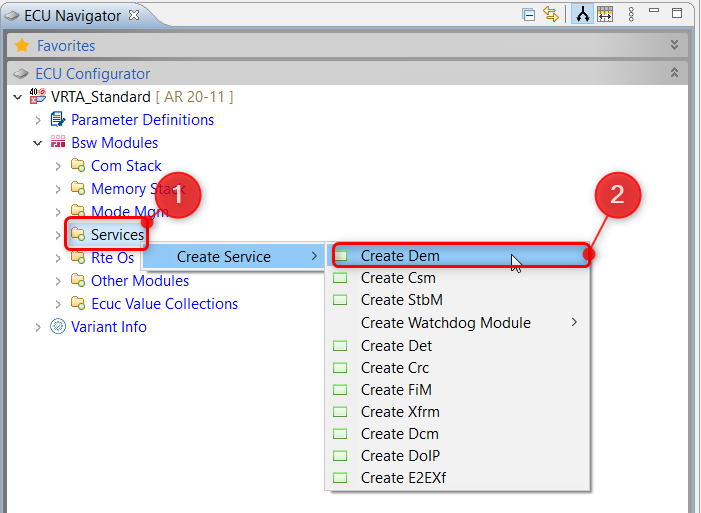

Begin by creating a new DEM module; this must be manually configured due to ConfGen not supporting it's generation. To do this, right-click on the Services category under Bsw Modules. Here select "Create Dem":

The DEM module consists of two main containers: DemGeneral and DemConfigSet. This application will first look into the DemGeneral container, before configuring DemConfigSet which has the bulk of our configurations.

Dem Configuration

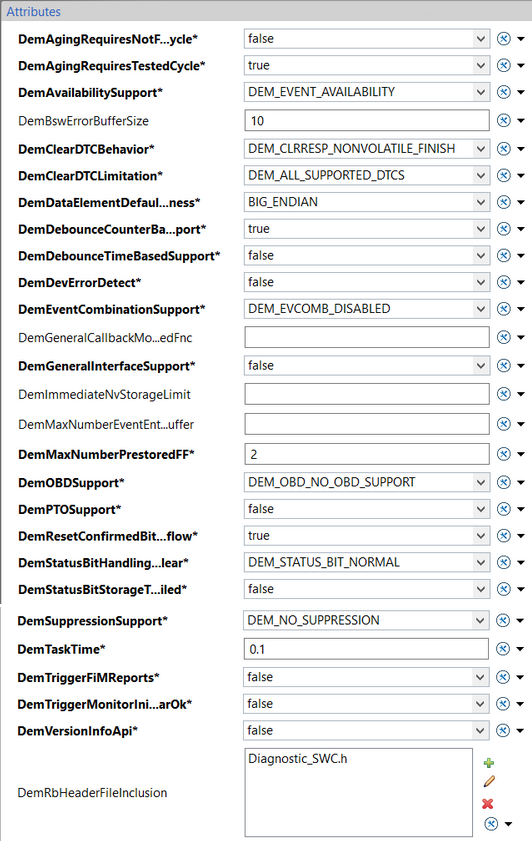

Once the DEM module has been created, open it within the BSW Editor. Then to begin, navigate to the DemGeneral container and start configuring these parameters:

  • DemAgingRequiresNotFailedCycles = FALSE
    • Defines if the aging cycle counter is processed in operation cycles with test failed report or not.
  • DemAgingRequiresTestedCycles = TRUE
    • Defines if the aging cycle counter is processed every aging cycle or if only tested aging cycles are to be considered.
  • DemAvailabilitySupport = DEM_EVENT_AVAILABILITY
    • This configuration switch defines, whether support for availability is enabled or not.
  • DemClearDTCBehaviour = DEM_CLRRESP_NONVOLATILE_FINISH
    • Defines the clearing process of diagnostic information for volatile and non-volatile memory and the positive response handling for the Dcm module.
  • DemClearDTCLimitation = DEM_ALL_SUPPORTED_DTCS
    • Defines the scope of the ClearDTC API.
  • DemDataElementDefaultEndianness = BIG_ENDIAN
    • Defines the default endianness of the data belonging to a data element which is applicable if the DemExternalSRDataElementClass does not define a endianness.
  • DemDebounceCounterBasedSupport = TRUE & DemDebounceTimerBasedSupport = FALSE
    • These attributes/parameters define whether support for counter-based or timer-based debouncing is enabled.
  • DemDevErrorDetect = FALSE
    • Enables/Disables the detection and notification of development errors.
  • DemEventCombinationSupport = DEM_EVCOMB_DISABLED
    • Defines the type of event combination supported by the Dem module.
  • DemGeneralInterfaceSupport = FALSE
    • Provides interfaces GeneralEvtInfo, GeneralCallbackEventDataChanged and GeneralCallbackEventStatusChange if set to TRUE.
  • DemMaxNumberPrestoredFF = 2
    • Defines the maximum number of prestored freeze frames.
  • DemStatusBitHandlingTestFailedSinceLastClear = DEM_STATUS_BIT_NORMAL
    • Defines whether aging and displacement mechanisms shall be applied to the TestFailedSinceLastClear status bit.
  • DemStatusBitStorageTestFailed = FALSE
    • Enable/Disable the permanent storage of the TestFailed status bits. If enabled, the failure of an event is stored in the next power cycle.
  • DemTaskTime = 0.01
    • The time for the periodic cycle task.
  • DemHeaderFileInclusion = Diagnostic_SWC.h
    • Header files to be included in the DEM module containing used C-callback declarations.

DemEventMemorySet

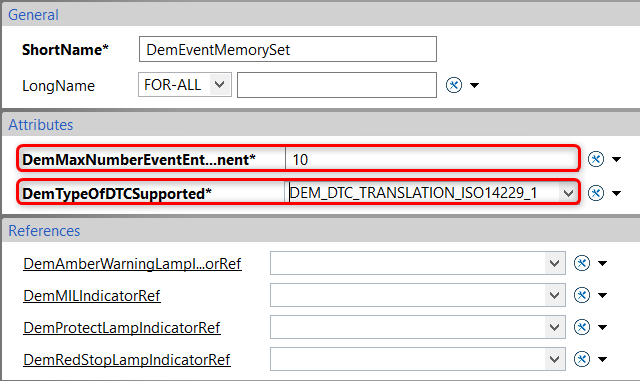

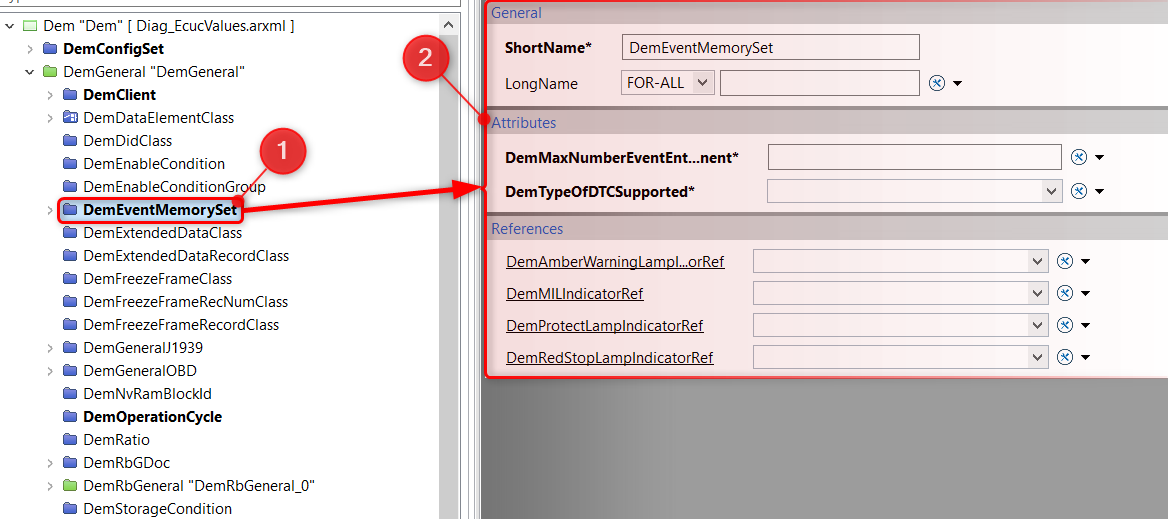

Following these configurations, navigate within the DemGeneral container to create the DemEventMemorySet:

  • DemMaxNumberEventEntryPermanent = 10
    • Maximum number of events which can be stored in permanent memory
  • DemTypeOfDTCSupported = DEM_DTC_TRANSLATION_ISO14229_1
    • Defines the format returned by Dem_GetTranslationType

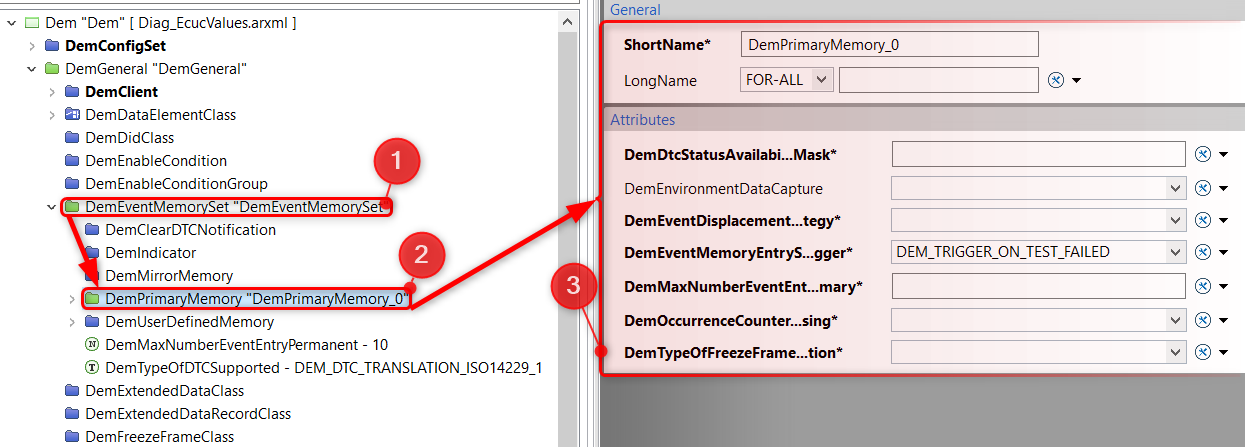

Within the DemEventMemorySet container, there are further attributes that can be configured. For the purpose of this workflow, navigate to the DemPrimaryMemory container:

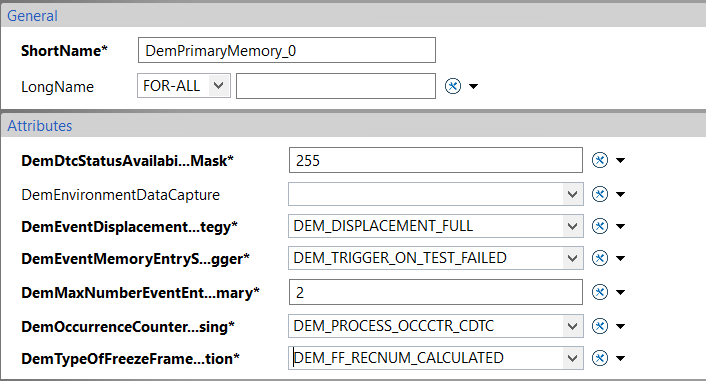

Here configure the following parameters:

  • DemDtcStatusAvailablityMask = 255
    • Mask for the supported DTC status bit by the DEM. Used in the positive response of the UDS service 0x19.
  • DemEventDisplacementStrategy = DEM_DISPLACEMENT_FULL
    • Defines whether support for event displacement is enabled and which strategy to follow.
  • DemEventMemoryEntryStorageTrigger = DEM_TRIGGER_ON_TEST_FAILED
    • The primary trigger to allocate an event memory entry.
  • DemMaxNumberEventEntryPrimary = 2
    • Maximum number of events which can be stored in primary memory.
  • DemTypeOfFreezeFrameRecordNumeration = DEM_FF_RECNUM_CALCULATED
    • Defines the type of assigning for freeze frame record numbers against event-specific freeze frame records.
  • DemOccurenceCounterProcessing = DEM_PROCESS_OCCCTR_CDTC
    • Defines the consideration of the fault confirmation process for the occurrence counter.

DemClient

After configuring the general parameters and EventMemorySet, the next step is to create a client that will have access to DEM through it's APIs. To do this, navigate to the DemClient container within DemGeneral:

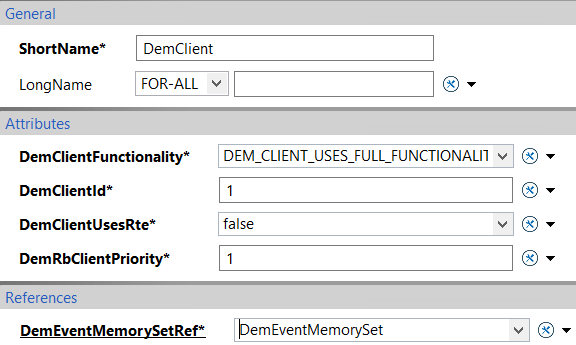

Then configure the DemClient as shown below:

Here is a brief description of each attribute configure and their purpose:

  • DemClientFunctionality = DEM_CLIENT_USES_FULL_FUNCTIONALITY
    • Defines the functionality provided by DEM for the DemClient.
  • DemClientId = 1
    • A unique identifier for a DEM Client.
  • DemClientUsesRte = FALSE
    • If TRUE, the client shall only use the DEM module routed through the RTE. Providing C/S Interfaces: CddIf, EvMemOverflowIndication).
  • DemRbClientPriority = 1
    • Defines a unique priority value that a DemClient can have; the lower the value, the higher the priority.
  • DemEventMemorySetRef = DemEventMemorySet
    • References the client to an assigned event memory container that contains client specific settings and event memories.

DemOperationCycles

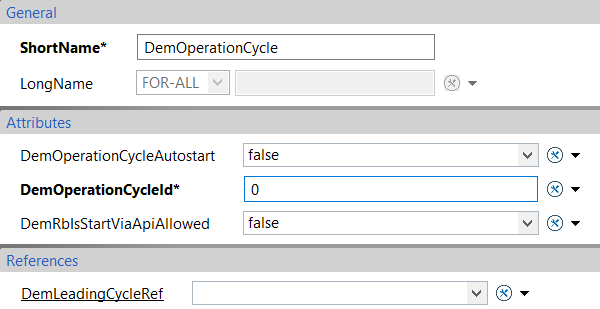

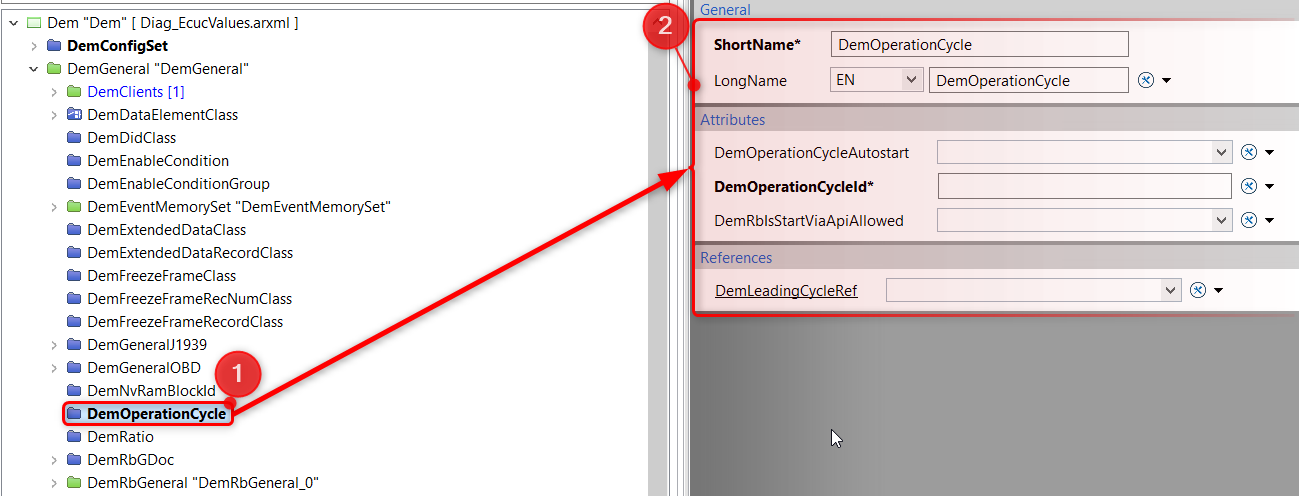

Navigate to the DemOperationCycles container within DemGeneral.

An operation cycle within DEM is the duration between two time points. An operation cycle has start and end points, during which diagnostic Monitors check for a diagnostic event periodically. Configure this operation cycle as follows:

  • DemOperationCycleAutostart
    • Defines if the operation cycles is automatically (re-)started during Dem_PreInit.
  • DemOperationCycleId
    • A unique identifier for the operation cycle to known by.
  • DemRbIsStartViaApiAllowed
    • Defines if the dependant cycle is allowed to be started within Dem_RestartOperationCycle. (Requires DemLeadingCycleRef)
  • DemLeadingCycleRef
    • Defines an operation cycle which is relevant to the processing of the current operation cycle being configured.

DemRbGeneral

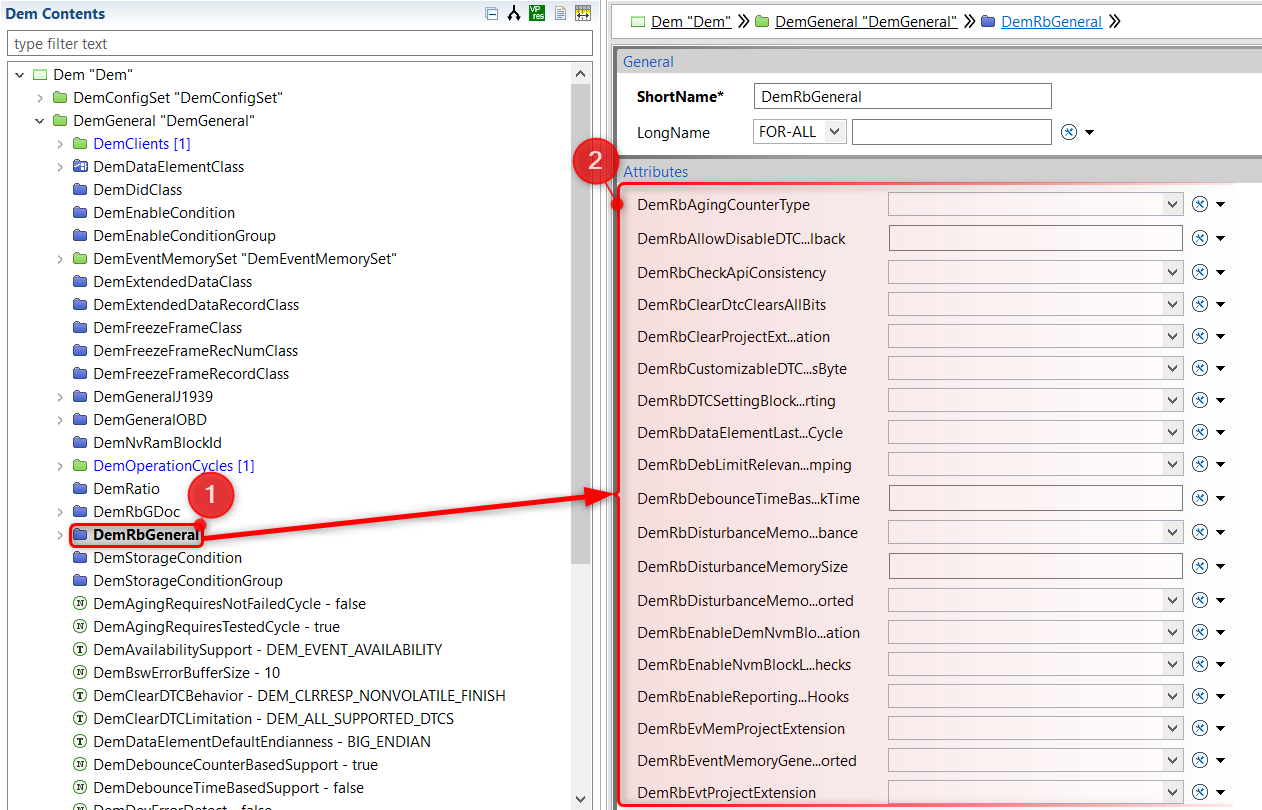

After configuring the DemOperationCycle, configure the DemRbGeneral container. To do this, navigate to the DemRbGeneral tab:

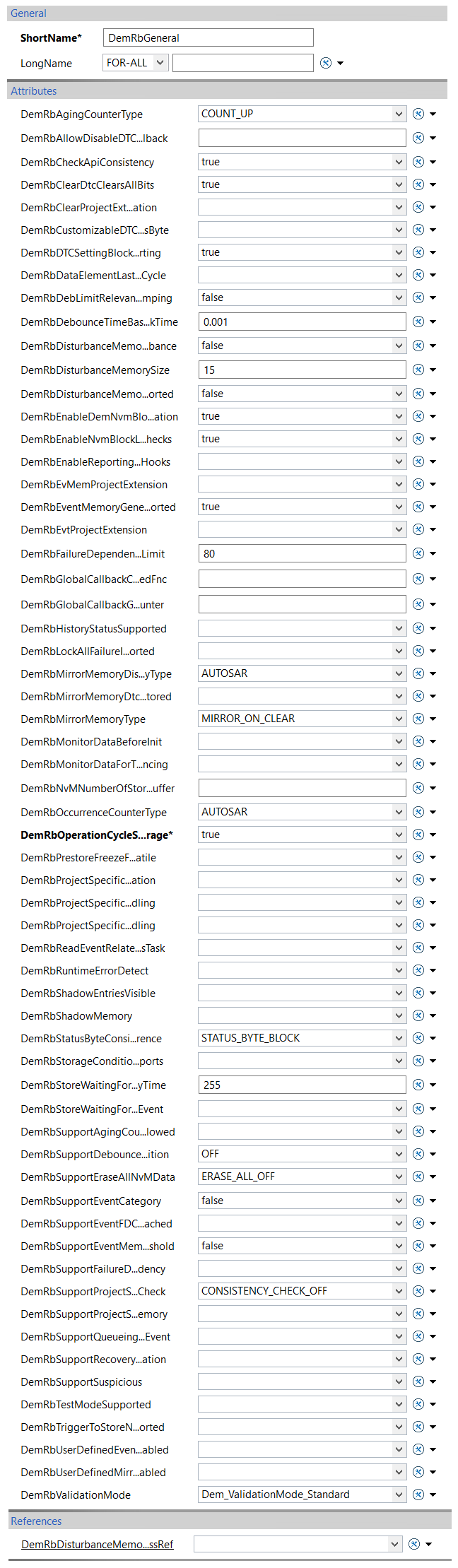

This will show a long list of attributes to configure, below are the essential configurations made for this workflow:

  • DemRbAgingCounterType = COUNT_UP
    • Defines the type of aging counter to be used (if used).
  • DemRbCheckApiConsistency = TRUE
    • Controls the check done for consistency of DEM C and RTE APIs.
  • DemRbClearDtcClearsAllBits = TRUE
    • Controls whether clear DTC will clear all the bits of the isobyte, in case of FALSE the testfailed flag and warning indicator flag won't be cleared.
  • DemRbDTCSettingBlocksReporting = TRUE
    • Controls whether DTC Setting will block the reporting of event status like enableconditions or whether the DTC Setting does not block the reports allowing a system behaviour.
  • DemRbDebounceTimeBasedTaskTime = 0.001
  • DemRbEnableNvmBlockLengthChecks = TRUE
    • Defines if the static assertion check for NVM Block Length is enabled or disabled.
  • DemRbEventMemoryGenericSupported = TRUE
    • Enables/Disables support for the generic event memory services: Dem_GetDTCByOccurenceTime and Dem_GetEventMemoryOverflow.
  • DemRbMirrorMemoryDisplacementStrategyType = AUTOSAR
    • Defines the type of displacement strategy used for Mirror Memory.
  • DemRbMirrorMemoryType = MIRROR_ON_CLEAR
    • Defines the type of Mirror Memory.
  • DemRbOccurrenceCounterType = AUTOSAR
    • Defines the type of Occurrence Counter.
  • DemRbOperationCycleStatusStorage = TRUE
    • Defines if the operation cycle state is available over the power cycle.
  • DemRbStatusByteConsitencyPreference = STATUS_BYTE_BLOCK
    • States which source to prefer if the event status bits stored in the event status byte Nvm block and the event memory Nvm block are inconsistent.
  • DemRbValidationMode = Dem_ValidationMode_Standard
    • Defines if the executed validations shall be specially enhanced for RTA-BSW BSW Events or if they shall be standard project validations.

DemDataElementClass

At this point within the workflow, DemGeneral has been configured, though there are further containers found in this element which require configuration. However, these further configurations directly influence the DTCs that will be configured for this project. To begin, navigate within DemGeneral to container DemDataElementClass:

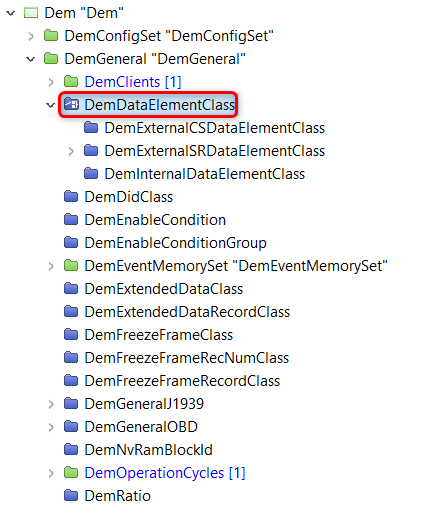

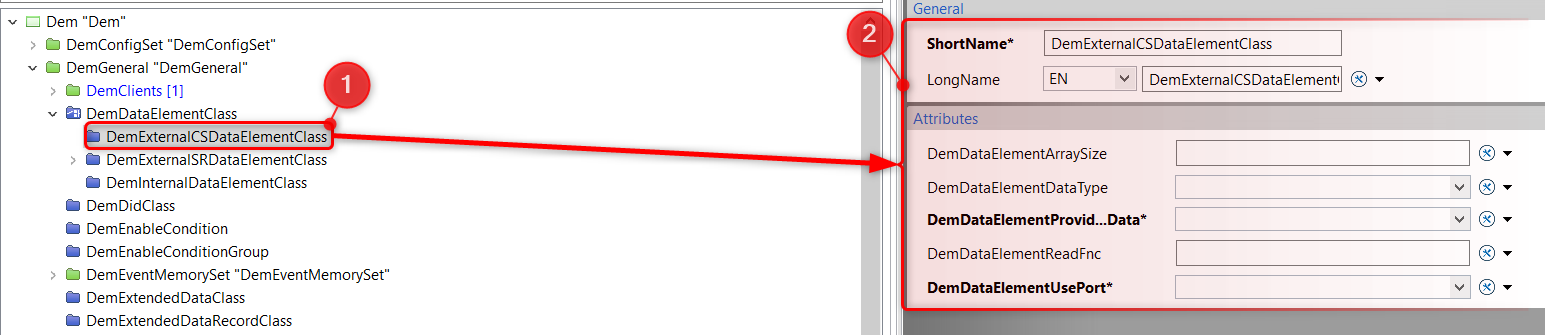

DemDataElementClass is a container for internal/external data element classes, and provides three possible implementations: DemExternalCSDataElementClass, DemExternalSRDataElementClass and DemInternalDataElementClass. DemExternalCSDataElementClass contains configuration for an external client/server based data element, while DemExternalSRDataElementClass contains the same but based on sender/receiver ports.

Within our project, we will be configuring three DemDataElementClass'. Two external client/server data element classes and one internal class. Starting with the first external class, select the DemExternalCSDataElementClass within the DemDataElementClass container:

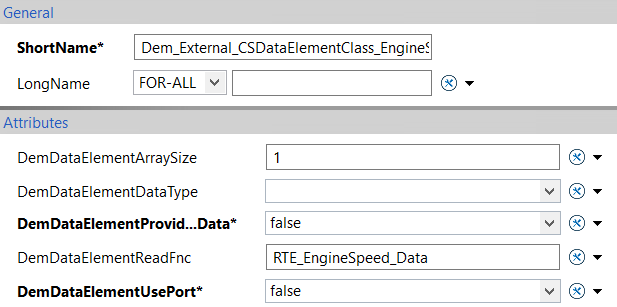

Then configure this class "DemDataElementClass_EngineSpeed" as follows:

  • DemDataElementArraySize = 1
    • Defines the number of elements in the array, if the data element is an array. NB: this is not the size in bytes.
  • DemDataElementProvideMonitorData = FALSE
    • If TRUE, the generated function call to retrieve the data element, has the monitorData0 as an additional first parameter.
  • DemDataElementReadFnc = RTE_EngineSpeed_Data
    • Defines the prototype of the C function "ReadDataElement" used to get the according value, in the event DemDataElementUsePort is set FALSE.
  • DemDataElementUsePort = FALSE
    • If TRUE, a R-Port is generated to obtain the data element.

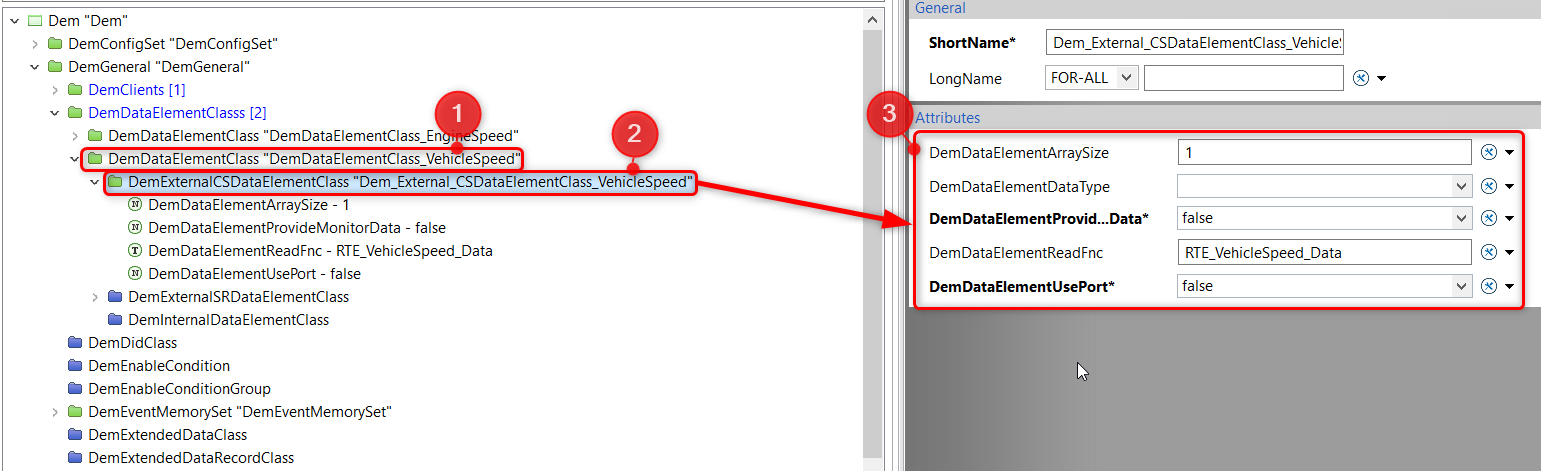

After configuring this class, create another external client/server class "DemDataElementClass_VehicleSpeed" as follows:

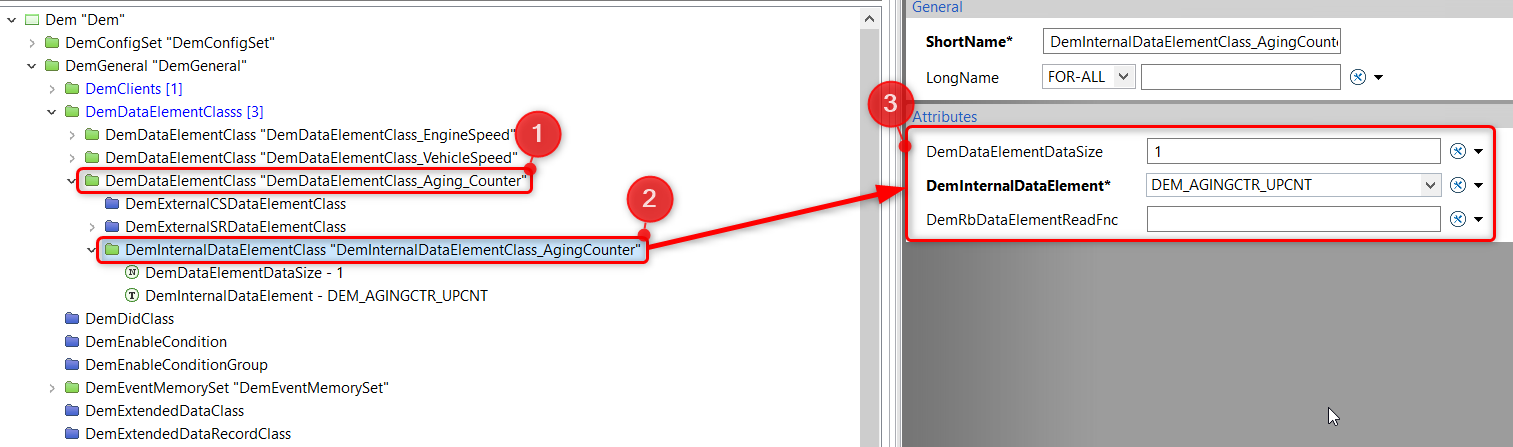

Finally create the internal class "DemDataElementClass_Aging_Counter":

  • DemDataElementDataSize = 1
    • Defines the size of the data element in bytes.
  • DemInternalDataElement = DEM_AGINGCTR_UPCNT
    • Defines the Dem-internal value, which is mapped to the data element.

DemExtendedDataRecordClass

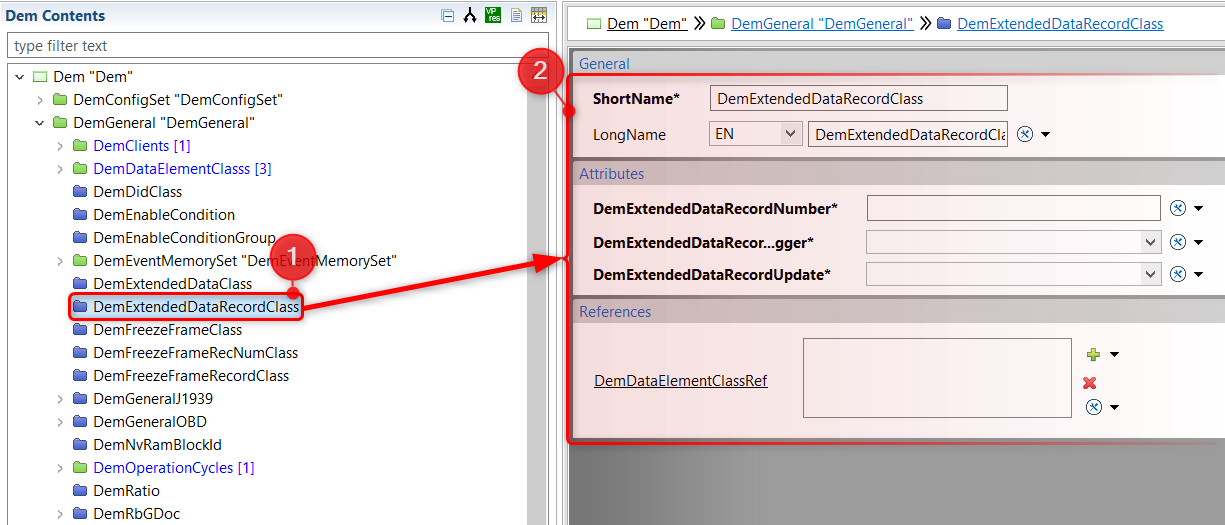

Extended Data Records (EDRs) are used to store additional information related to a diagnostic event, with the ability to contain multiple data fields (DemDataElementClass) that are specific to a type of diagnostic event. Within this project, it will be used to represent our aging counter. To do this, navigate to the DemExtendedDataRecordClass within DemGeneral:

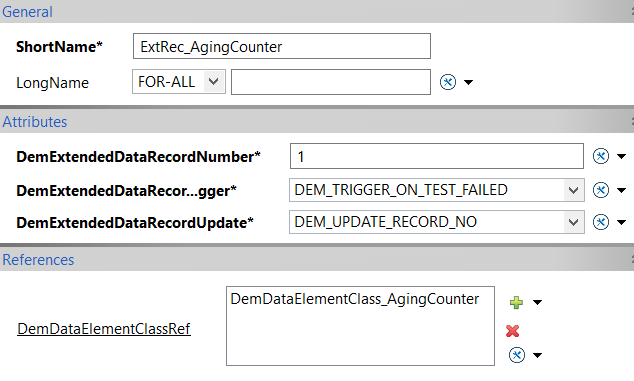

Name the new EDR "ExtRec_AgingCounter" and configure it as follows:

  • DemExtendedDataRecordNumber = 1
    • A unique identifier assigned to each EDR, distinguishing them and can be used to prioritise events based on severity. For example, events with higher severity can be assigned a higher number, allowing the system to prioritise them.
  • DemExtendedDataRecordTrigger = DEM_TRIGGER_ON_TEST_FAILED
    • A mechanism to trigger the creation and storage of an EDR, typically set when a certain condition or threshold is met, such as a fault code being generated or sensor reading reaching a limit value. When activated, the DEM automatically creates an EDR for the event and stores.
  • DemExtendedDataRecordUpdate = DEM_UPDATE_RECORD_NO
    • The process of adding/modifying information in an existing EDR, keeping it up to date and accurate as the diagnostic event evolves or is resolved. This is only captured if the configured trigger condition is fulfilled. For this aging counter, there won't be the requirement of this attribute, therefore set to no.
  • DemDataElementClassRef = DemDataElementClass_Aging_Counter
    • Links to the DemDataElementClass which this EDR belongs.

DemExtendedDataClass

The Extended Data Class contains combinations of extended data records, grouping them. And represents event related data, as diagnostic events can contain up to one set of extended data records, the same goes for freeze frame records. To create an extended data class from the EDR created, navigate to DemExtendedDataClass within DemGeneral:

This container should be configured as follows for the aging counter:

DemDidClass

With the two remaining DemDataElementClass's, they will be used to configure Diagnostic Data Identifiers (DIDs). As discussed in the functional overview: DIDs are identifiers for accessing data associated with a diagnostic event, corresponding to specific pieces. To create a DemDidClass navigate to the container in DemGeneral:

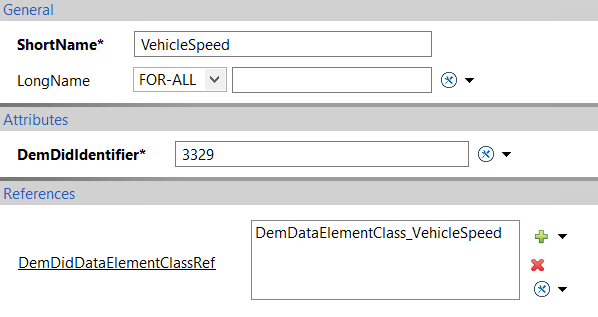

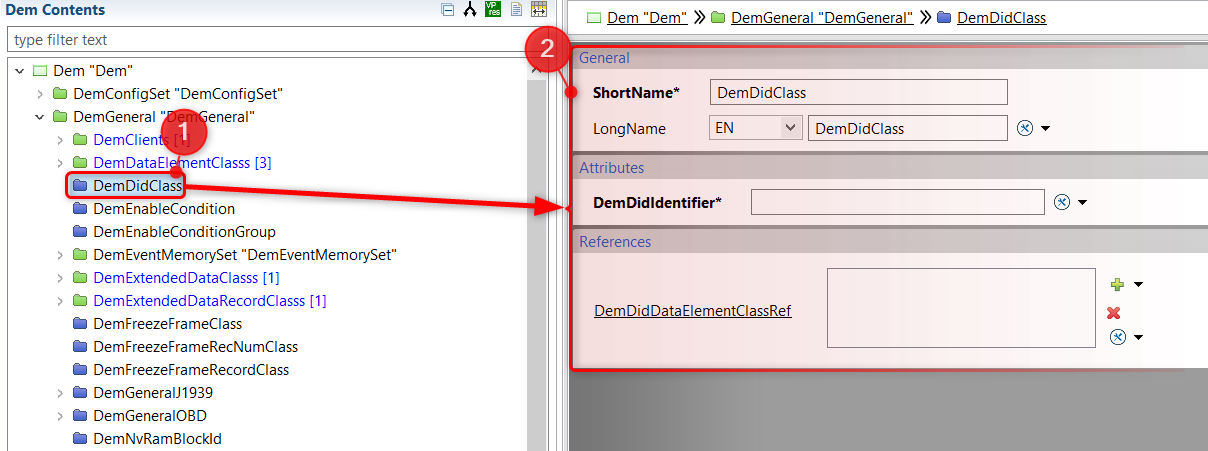

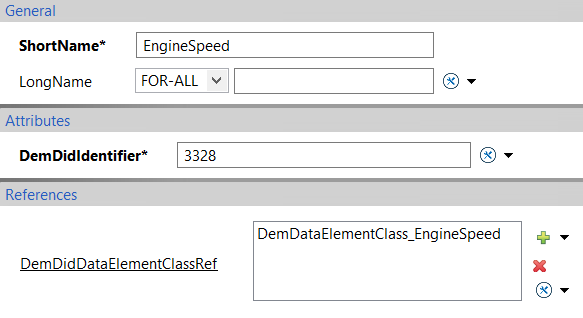

Here set the identifier to be used for accessing the DemDataElementClass referenced as configured below:

Repeat this for the DemDataElementClass_VehicleSpeed:

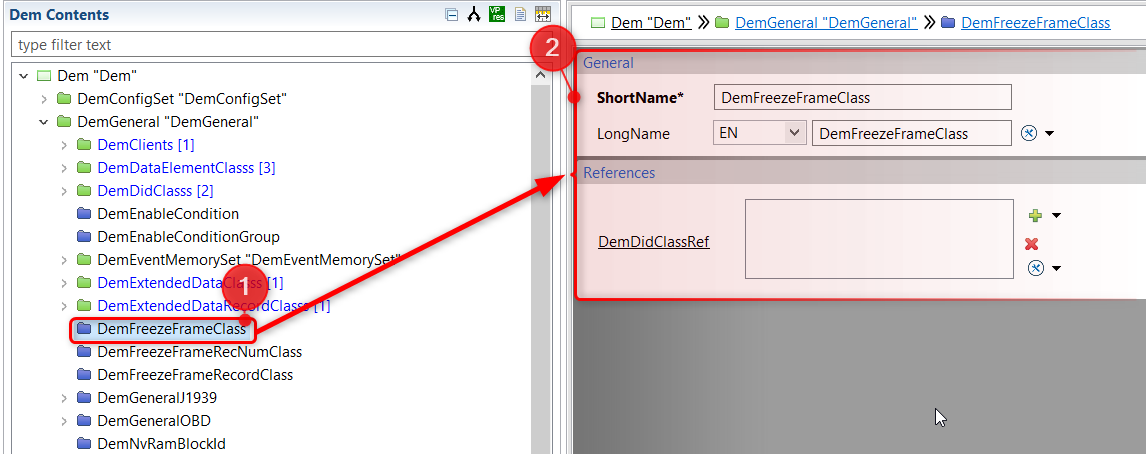

DemFreezeFrameClass

Freeze Frames allow the capture and storage of values at specific moments in time during a diagnostic event. It's purpose is to provide a 'snapshot' of the systems state at the discovery of a diagnostic event. The DemFreezeFrameClass is typically implemented as a data structure storing values of multiple parameters; as it will be in this project. To do so, navigate to the DemFreezeFrameClass container within DemGeneral:

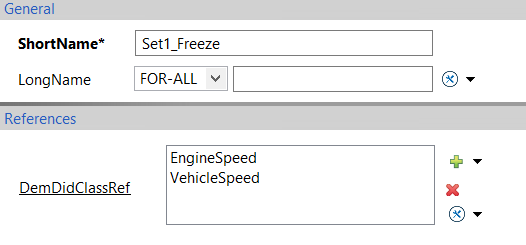

Naming the DemFreezeFrameClass "Set1_Freeze" configure it as follows, including the references to the 2 previously created DIDs:

DemNvRamBlockId

DEM module typically uses non volatile memory to store diagnostic event related data. Thus the blocks of Nv-Memory used by DEM must also be configured in NvM. Please note that this is only a typical situation but DEM can also be configured to use RAM only. This example, as most of cases, uses permanent memory; so, NvM blocks must be configured.

NB: to compute the BlockLength parameter to bet set for each Block Descriptor consider the following:

  • For each EventStatusByte BlockDescriptor the size must be equal to the number of diagnostic events configured in DEM plus one
  • For each Eventmemorylocation Block Descriptor the size depends on the configuration of some parameters, refer to structure ‘Dem_EvMemEventMemoryType’ to compute the size

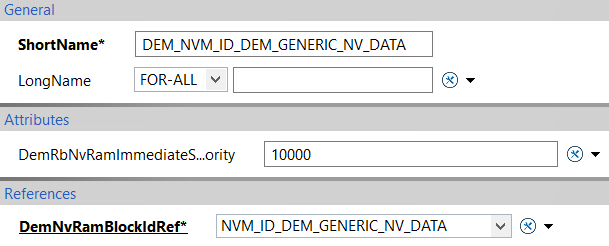

Then go back to DEM configuration and set the references to these NvMBlockDescriptors creating the DemNvRamBlockId containers as shown:

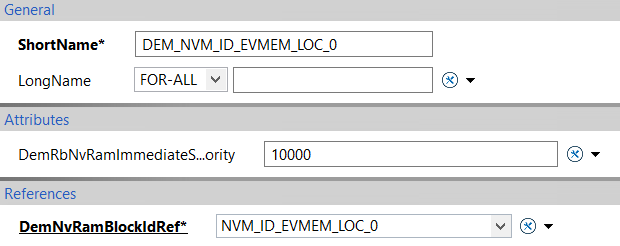

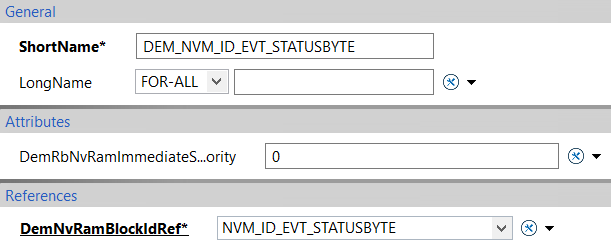

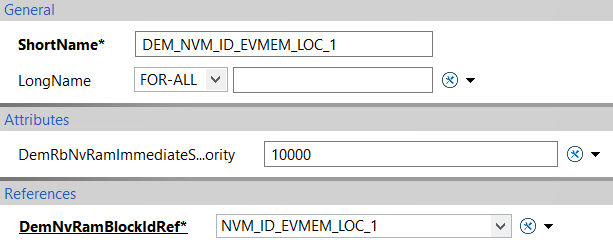

Below are the four DemNvRamBlockId's for this project:

DemDebounceCounterBasedClass

Now that the DemGeneral containers are all configured, the next configurations within the DEM module are located in the DemConfigSet container. The first to be configured here: DemDebounceCounterBasedClass. Earlier, it was configured if a counter-based or timer-based debounce feature was to be used, within this project the counter-based debounce was chosen. Therefore, navigate to the DemDebounceCounterBasedClass container:

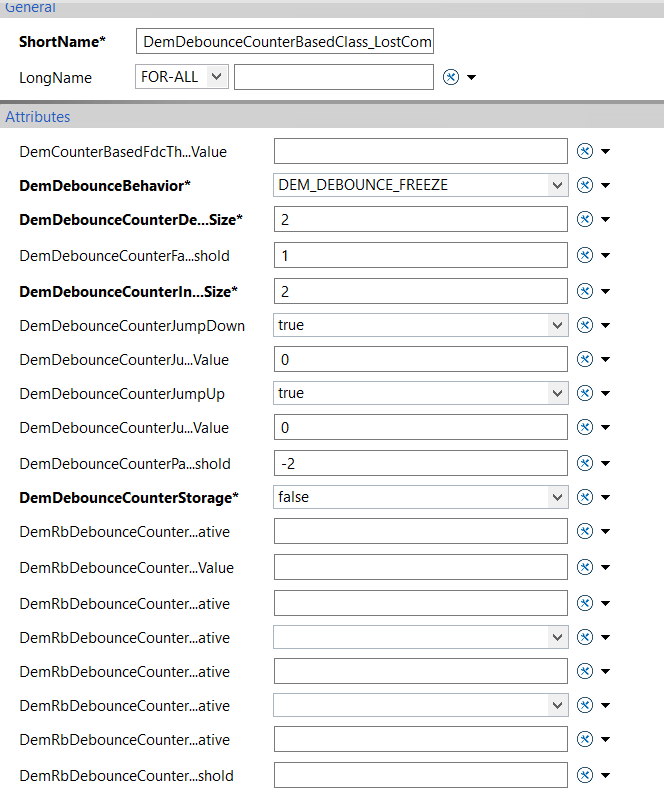

To configure this container, here are the attributes used in this project to create our debounce feature:

  • DemDebounceBehaviour = DEM_DEBOUNCE_FREEZE
    • Defines how the event debounce algorithm will behave.
  • DemDebounceCounterDecrementStepSize = 2
    • Defines the step size for decrementation of the internal debounce counter.
  • DemDebounceCounterFailedThreshold = 1
    • Defines the value of the internal debounce counter, which indicates the failed status.
  • DemDebounceCounterIncrementStepSize = 2
    • Defines the step size for incrementation of the internal debounce counter.
  • DemDebounceCounterJumpDown = TRUE
    • Activation of jump-down.
  • DemDebounceCounterJumpUp = TRUE
    • Activation of jump-up.
  • DemDebounceCounterPassedThreshold = -2
    • Defines the value of the internal debounce counter which indicates the passed status.
  • DemDebounceCounterStorage = FALSE
    • Defines if the debounce counter value is to be non-volatile or not.

DemDTCAttributes

The DemDTCAttributes container holds attributes associated with a Diagnostic Trouble Code (DTC) such as severity, functional unit, and the status of the DTC. It is an essential part of the DEM module and is required for building a functioning DTC. Navigate to the DemDTCAttributes container within DemConfigSet:

Here create a DemDTCAttribute with the following parameters:

  • DemAgingAllowed = TRUE
    • Defines if a DTC can be aged.
  • DemAgingCycleCounterThreshold = 40
    • Number of aging cycles needed to unlearn/delete the event.
  • DemDTCPriority = 2
    • Defines the priority of the event/dtc in view of full event memory. Lower value means higher priority.
  • DemDTCSignificance = DEM_EVENT_SIGNIFICANCE_FAULT
    • Defines the significance of the event, which indicates additional information concerning fault classification and resolution.
  • DemImmediateNvStorage = FALSE
    • Enables/Disables immediate storage triggering of an according event memory entry persistently to NVRAM.
  • DemMaxNumberFreezeFrameRecords = 2
    • Defines the maximum number of according freeze frames, which can be stored for this event.
  • DemAgingCycleRef = DemOperationCycle_0
  • DemExtendedDataClassRef = Ext_1
  • DemFreezeFrameClassRef = Freeze_1
  • DemMemoryDestinationRef = DemPrimaryMemory_0

DemDTC

The DemDTC container stores information about each DTC, including its status, the functional unit associated with the fault, and the severity of the problem. To have a DTC within our project, it must be configured here. Navigate to the DemDTC container within DemConfigSet:

Here create a DTC with the following parameters:

  • DemDTCFunctionalUnit = 2
    • A 1-byte value which identifies the corresponding basic vehicle/system function which reports the DTC, and is necessary for the report of severity information.
  • DemDTCSeverity = DEM_SEVERITY_MAINTENANCE_ONLY
    • Defines the DTC severity in accordance with ISO 14229-1.
  • DemDTCValue = 12648496
    • The Unique Diagnostic Trouble Code value for UDS
  • DemDTCAttributesRef = DemDTCAttributes_Event_0
    • Defines the DemDTCAttribute which pairs with this DTC.

DemComponents

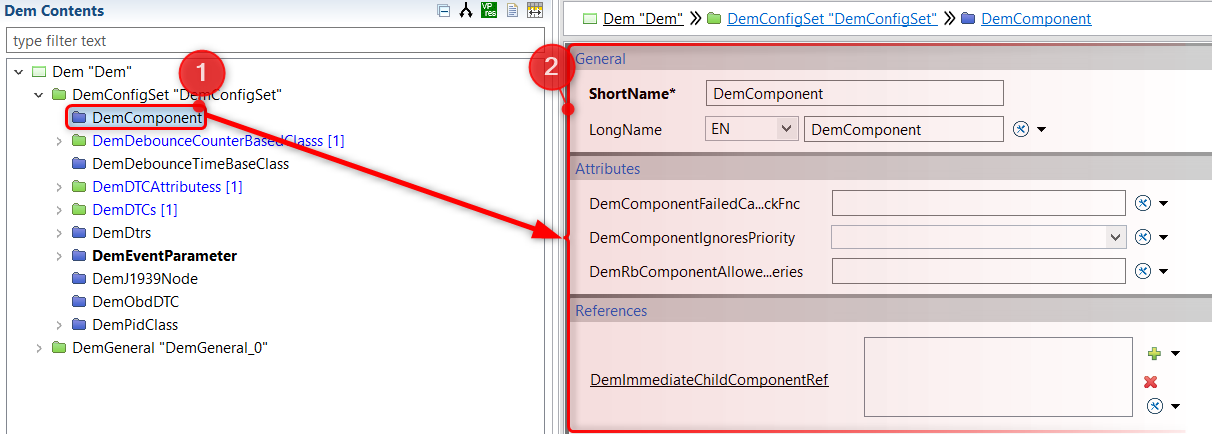

The DemComponent holds information about the various components or sub-systems within a vehicle that can generate DTCs. Each component/sub-system is represented by a unique DemComponent record; the information stored includes: the name of the component, it's type, and the events or conditions that can trigger a DTC. To create a DemComponent navigate to its container within DemConfigSet:

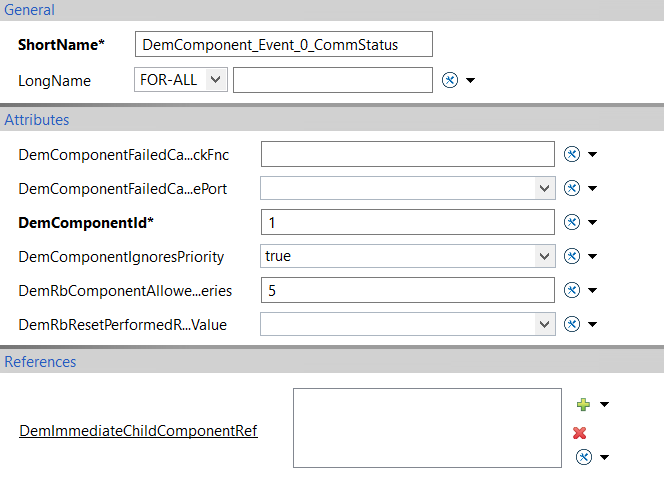

Here create a DemComponent in accordance to the following parameters:

  • DemComponentId = 1
    • Unique identifier for DemComponent.
  • DemComponentIgnoresPriority = TRUE
    • Defines if the priority of events at this component shall be ignored. For purpose of this small project example set to TRUE.
  • DemRbComponentAllowedRecoveries = 5
    • Number of allowed recoveries at a component during one ignition cycle. Used to limit system toggling for non-robust  monitoring.

DemEventParameter

The DemEventParameter holds information about the parameters associated with an event that can trigger a DTC. This is required to link a DTC to a DemComponent and an operation cycle. To create one, navigate to DemEventParameter within DemConfigSet:

Here create an event parameter using the following parameters:

  • DemEventAvailable = TRUE
    • Configures an event as available or unavailable.
  • DemEventConfirmationThreshold = 1
    • Defines the operation cycle threshold of the DTC confirmation status according to the Confirmation Threshold of ISO 14229-1
  • DemEventId = 1
    • Unique identifier of a diagnostic event.
  • DemEventKind = DEM_EVENT_KIND_SWC
    • Distinguishes between SW-C and BSW events.
  • DemComponentClassRef = DemComponent_Event_0_CommStatus
  • DemDTCRef = DemDTC
  • DemOperationCycleRef = DemOperationCycle_0

After creating this DemEventParameter assign the previously created Debounce Class:

BswM Configuration

After configuring the DEM module, it must be included into the BswM module to allow it to initialise on startup. To do this navigate to the BswM module in BSW Modules → Mode Mgm:

Action Item(s)

Open the module using the BSW Editor, then navigate to the BswMConfig container. Here are three further containers for BswM configuration, our interests lie within BswMModeControl. There will be attributes known as BswMActionLists and BswMActions, these are required to allow DEM to initialise. Start by creating a BswMAction as this will later be added to a BswMActionList which is ran at runtime:

Within this container, create a new BswMAction for both "BswM_AI_Dem_Init" and "BswM_AI_DemShutdown" and set their callout functions as follows:

Action List Item(s)

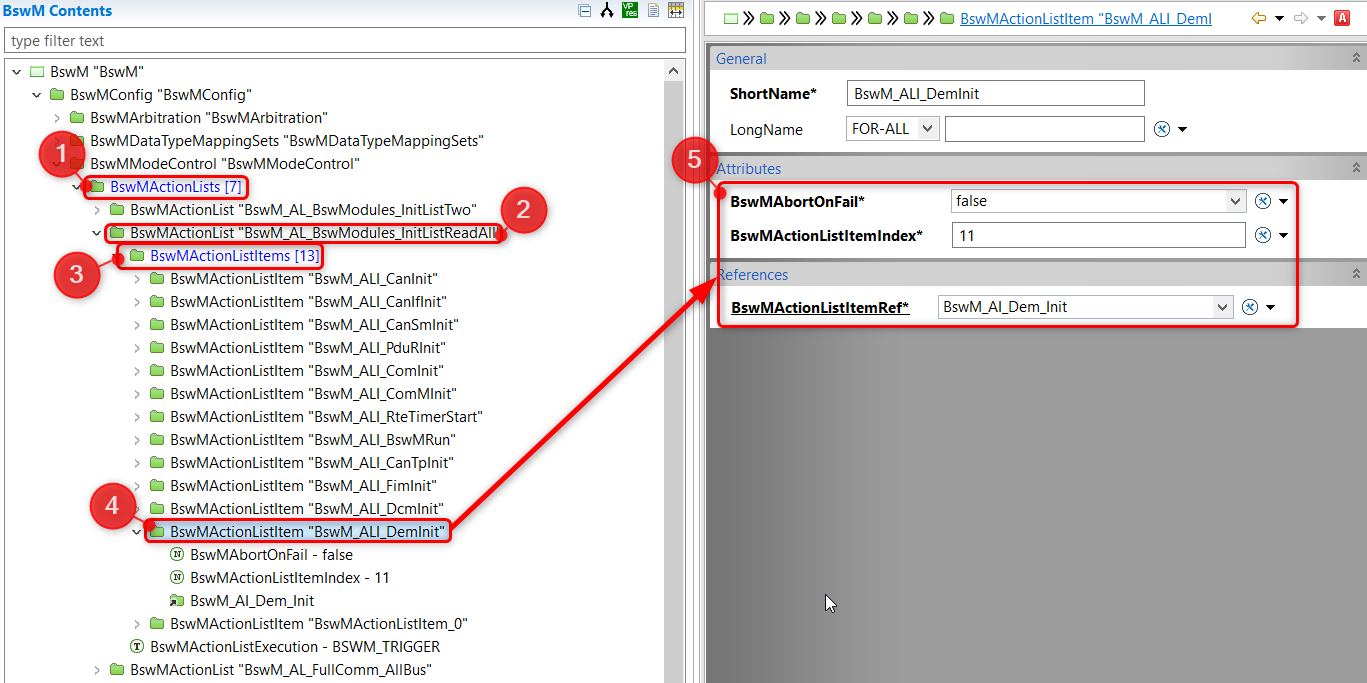

After creating the Action Items, it is time to implement them into an action list. Navigate back to the container: BswMActionLists and follow to the action list BswM_AL_BswModules_InitListReadAll. Within this container add the new init action item BswM_AI_Dem_Init as shown:

Complete the same for the shutdown action item BswM_AI_DemShutdown but within the BswM_AL_Shutdown

EcuM Configuration

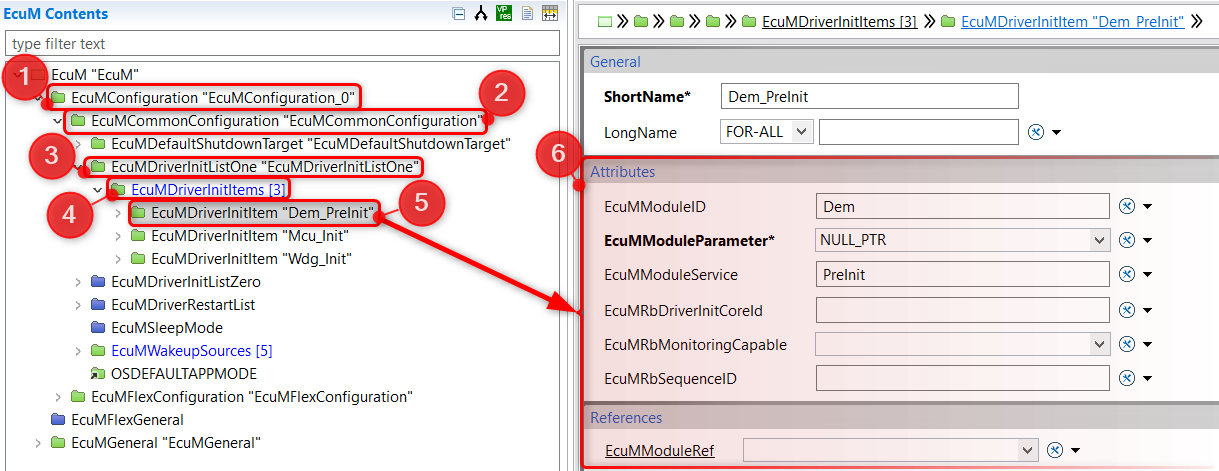

The DEM module shall distinguish between a pre-initialization mode and a full-initialized mode (operation mode). The function Dem_PreInit shall initialize the internal states of the DEM module necessary to process events and reset debounce counters reported by BSW modules. Add this function to the EcuM initialization list one as shown below:

DCM Configuration

As said in the introduction to this AN, UDS 0x19 service will be used to read Diagnostic Event memory. To do this, edit the DcmDsdServiceTable and add the new Service by setting its identifier; configuring the diagnostic session during which it will be available and the sub-service availability:

In a similar way, configure the needed sub-services; in this case sub-services 4, 6 and 10 have been configured:

As last, switch to Dcmdsp and create a new container of type DcmRbDspReadDTC and set the maximum number of DTC that can be read within a single request as well as the maximum number of records:

BSW Generation

Now to generate the BSW code:

Make sure DEM is selected in the generator:


  • No labels
